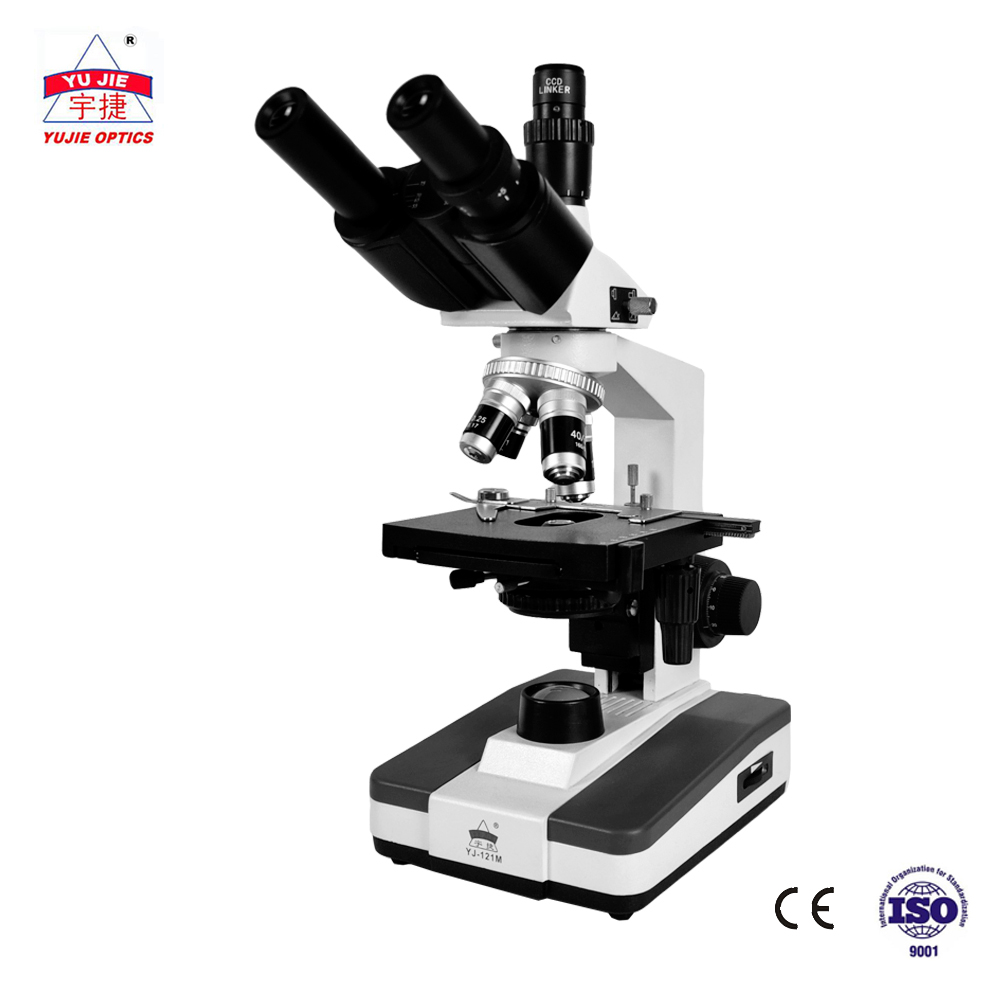

YJ-121T
2019-02-28 15:07:15 Click: 4681
This series microscope is a basic model and high precision instrument designed and produced by our company.It is sepcially designed for clinical examination and teaching demonstration in medical and health establishments, laboratories, agricultural science and technology field, research institutes. It is used for routine work and research in biology, bacteriology cytology and pharmacology.
Production Description
|  |
 |
| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/18mm |
| Objective | 45mm DIN Achromatic Objective: 4X,10X,40X(S), 100(S,Oil) |
| Head | Articulated Free Trinocular Head, Interpupillary Distance:55-75mm;30°Inclined, 360°Rotatable |
| Stage | Double Layers Mechanical Stage: 130X130mm, Moving Range X-Y: 60X30mm |
| Condenser | ABBE Condenser: N.A.1.25; Ф2-Ф30mm Iris Diaphragm and Ф32 Filter |
| Focusing Adjustment | Coaxial Coarse and Fine Focusing Adjustable Mechanism: 20mm, Precision:0.01mm |
| Illumination | Optional: Built-in Adjustable Brightness 1W LED lamp; 6V/20W Halogen Lamp |
| Optional | 1.WF10X, WF16X; 2.Semi Plan Objective, Plan Objective; 3.Rechargeable Batteries 4.Electronic Eyepiece1.3Mp, 3.0Mp |
| Net Weight | 4.9kg |
Package
1set/Foam + Inner Carton
2sets/Outer Carton;Gross Weight/Carton: 13kg
Carton Dimension: 50X34X50cm
Certificate
|
|
|
|
|
Company Pictures
 |  |
|
 |  |
|
