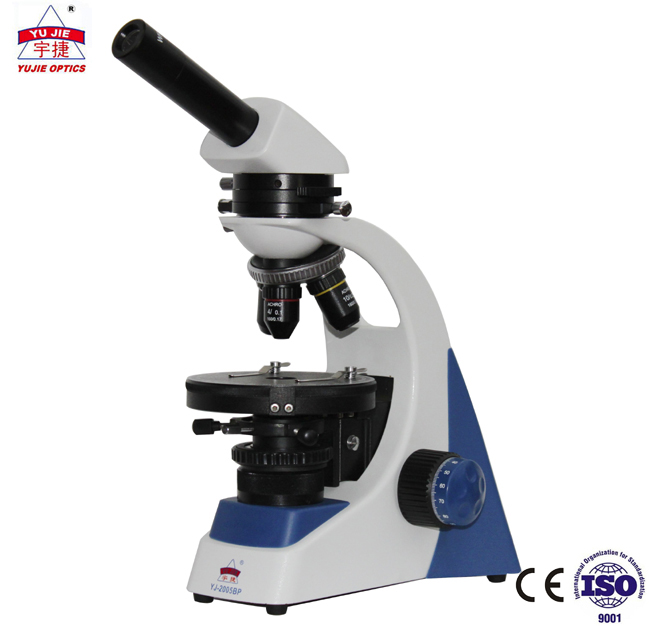

YJ-2005MP
2020-01-15 14:47:04 Click: 5365
Polarizing microscope is widely used in mineral, polymer, fiber, glass, semiconductor, chemical and other fields,using the lights' polarization characteristic to research and identify double refraction material; users are able to make single polarization observation, orthogonal polarization observation, cone light observation etc.
Production Description
 |  |
 |
| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/18mm |
| Objective | 45mm DIN Achromatic Objective: 4X,10X,40X(S), 100(S,Oil) |

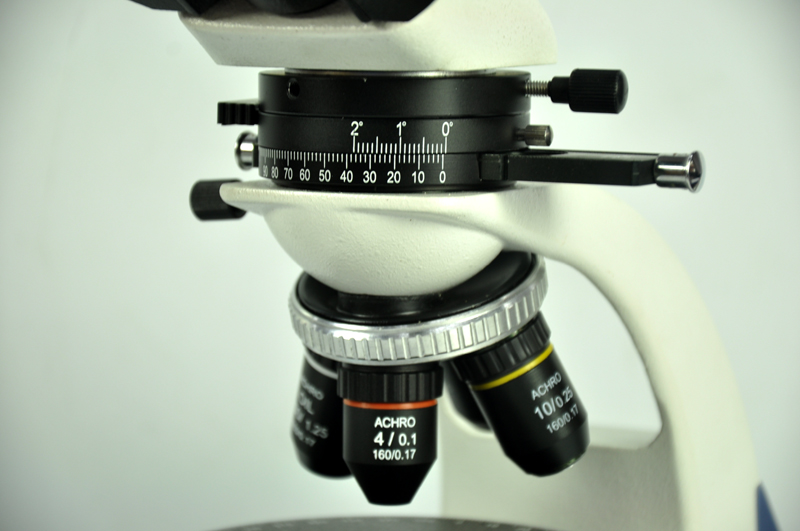

| Head | Monocular Head; 30°Inclined, 360°Rotatable;Rotatable Analyzer with Graduation 0°-90°, Sliding out of Optical Path; |
| Stage | Revolving Round Stage: Φ160mm;360° Rotatable and Graduated 1° Increments, Minimum Resolution 6’; |
| Condenser | ABBE Condenser: N.A.1.25; Ф2-Ф30mm Iris Diaphragm and Ф32 Filter |
| Focusing Adjustment | Coaxial Coarse and Fine Focusing Adjustable Mechanism: 14mm, precision: 0.01mm |
| Others | Optical Compensator:λSlip(First Class Red), 1/4 λSlip Polarize: On The Light Collector; 360° Rotatable |
| Illumination | Built-in Adjustable Brightness 1W LED Lamp |
| Optional | Eyepiece WF16X; |
| Net Weight | 3.1kg |
Package
1set/Foam + Inner Carton
2sets/Outer Carton,Gross Weight/Carton: 8kg
Carton Dimension: 44X37X47cm
