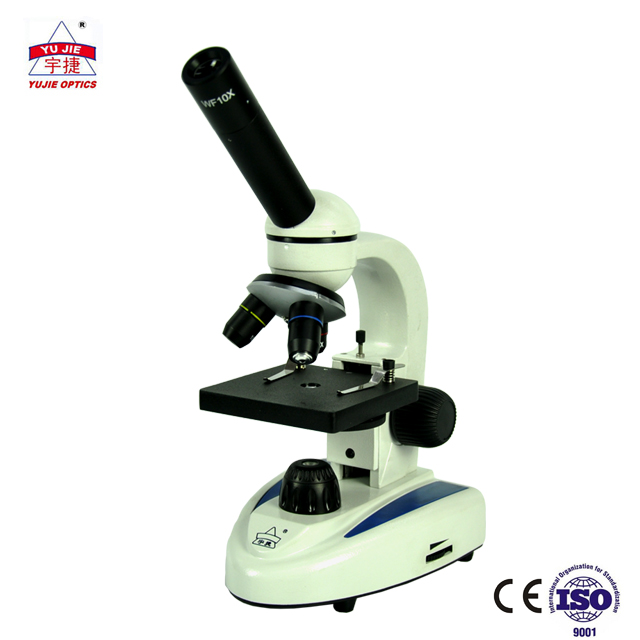

YJ-24
2024-09-06 16:00:48 Click: 4363
This series microscope is a basic model and high precision instrument designed and produced by our company.It is espcially designed for clinical examination and teaching demonstration in medical and health establishments, laboratories, agricultural science and technology field, research institutes. It is used for routine work and research in biology, bacteriology cytology and pharmacology.
Production Description
 |  |
| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/18mm；Total Magnification: 40X-640X |
| Objective | Achromatic Objectives: 4X,10X,40X(S) |
| Head | Monocular Head, 45°Inclined, 360°Rotatable |
| Stage | Plain Stage With Paired Clips: 95X95mm |
| Condenser | Single Lens Condenser: N.A.0.65; Six Stop Dial Diaphragm |
| Focusing Adjustment | Coarse Focusing Adjustable Mechanism: 14mm; |
| Illumination | LED Lamp |
| Optional | 1.WF16X, WF20X; 2.Rechargeable Batteries |
| Net Weight | 1.5KG |
Package
1set/Foam + Inner Carton
4sets/Outer Carton
